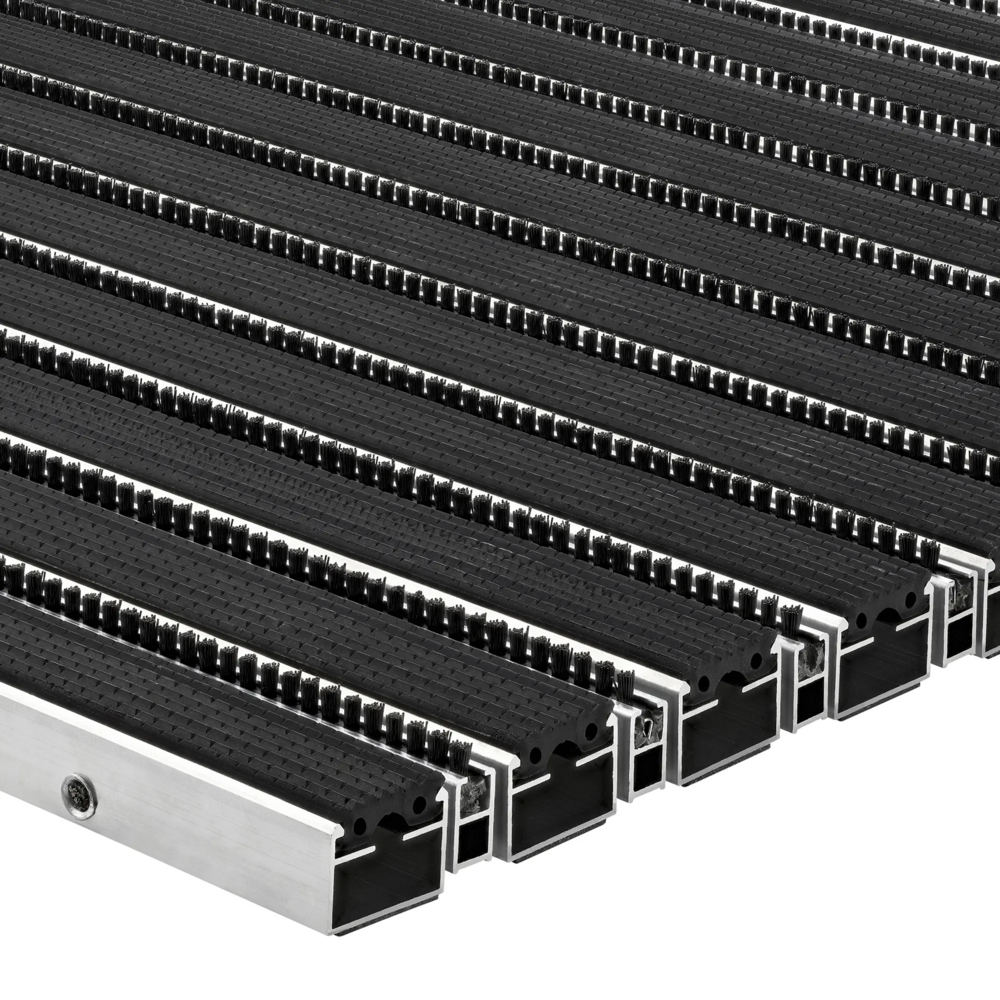

Portagard AB

Portagard AB

ab 184,21 *

Due to its integral brush strips, Portagard AB can be used where there are high levels of dirt. The micro-scraper profile incorporated in the rubber strips also ensures reliable levels of cleanliness.

  • Brush strip, rubber
  • Easy to clean
  • Completely non slip
Description
Additional information

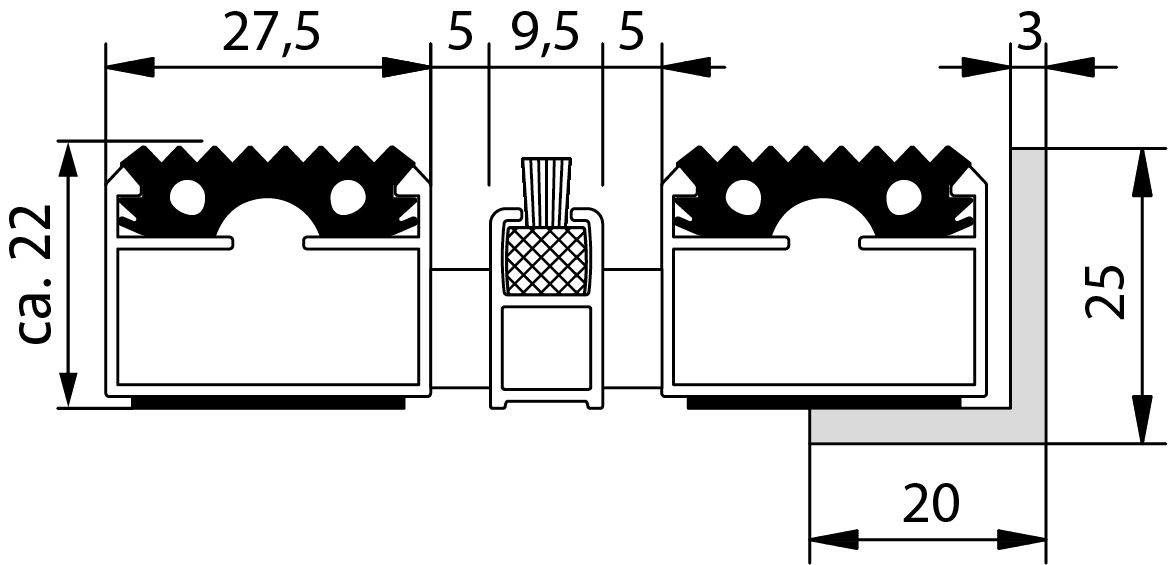

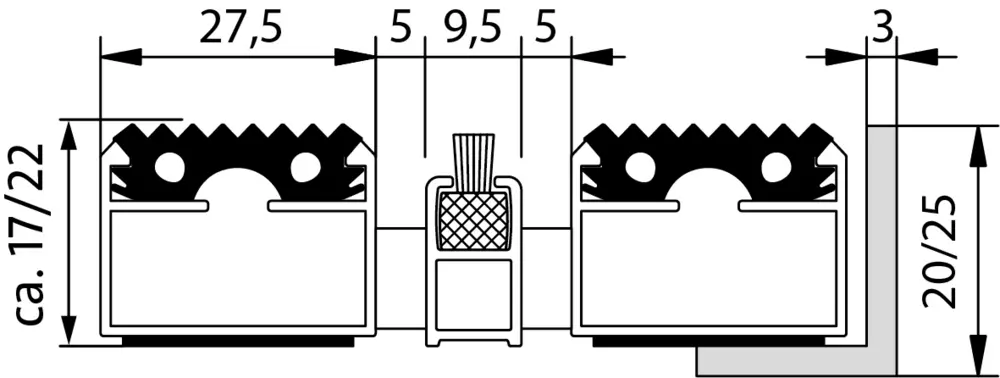

Mat height in mm 17 mm
22 mm
Weight (kg/m²) 14.15 kg/m²
15.41 kg/m²
Profile spacing 5 mm
Accessibility Wheelchairs and hand trolleys
Compressive wheel load Compressive wheel load: – area to DIN 1072 = 200 x 260 mm = 520 cm². – conditions: full-surface mat coverage, appropriate substructure. 2,000 N : 520 cm² = 4 N/cm², 10,000 N : 520 cm² = 19 N/cm²
Tread surface replaceable, robust, weather-proof and profiled rubber inserts alternating with 5 mm spacers and brush profiles
Support chassis Aluminium support chassis with integral micro-scraper bar and sound insulation underlay
Usage area Covered outdoor areas
For installation
Suitable for
Product property Aluminium
Plastic
Rubber
Product feature Brush strip
Product type Entrance mats
Colour black
